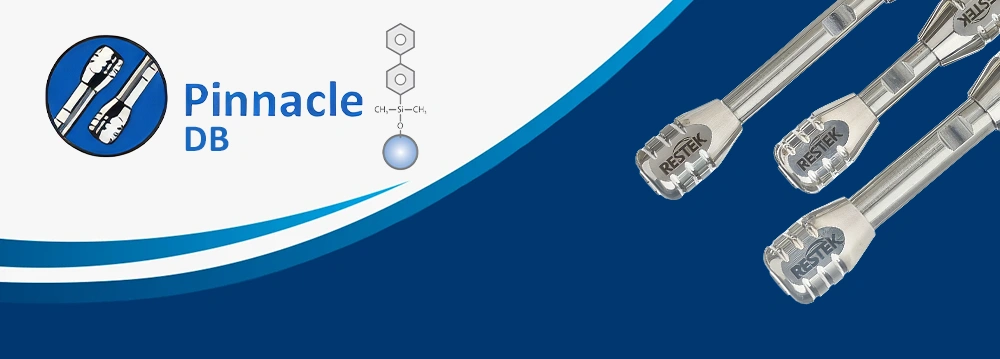

Restek Pinnacle LC Columns DB Biphenyl Header Picture

Restek Pinnacle DB Biphenyl 140Å Columns – Enhanced Selectivity for Aromatic Compounds

Restek Pinnacle DB Biphenyl 140Å Columns are high-performance reversed-phase HPLC columns designed to deliver enhanced selectivity for aromatic, unsaturated, and structurally related compounds. The biphenyl stationary phase provides distinctive π-π and hydrophobic interactions, offering complementary selectivity to conventional C18 phases and excellent performance for challenging chromatographic separations.

Key Specifications: Biphenyl stationary phase, 140 Å pore size, silica-based packing, and optimized surface chemistry for reliable retention, good peak shape, and reproducible HPLC performance. The 140 Å pore structure supports efficient analyte access to the stationary phase.

Typical Applications: Ideal for pharmaceutical analysis, environmental testing, food and beverage analysis, chemical analysis, and quality control. Restek Pinnacle DB Biphenyl 140Å Columns are particularly suitable for aromatic compounds, structurally similar analytes, and complex mixtures where enhanced selectivity and chromatographic resolution are required.

Choose Restek Pinnacle DB Biphenyl 140Å Columns for robust, reproducible HPLC separations and alternative selectivity in demanding analytical applications.

56 Products

Product Number	Description	Price	Specifications

RT-9409212

Pinnacle DB Biphenyl 140Å 1.9µm, 2.1 x 100mm, ea.

EUR 906.00

Will be procured as soon as possible

Product Number: RT-9409212
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 1.9 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 906.00

Will be procured as soon as possible

RT-9409232 Pinnacle DB Biphenyl 140Å 1.9µm, 2.1 x 30mm, ea. Price on request

Product Number: RT-9409232
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 1.9 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 30 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9409252

Pinnacle DB Biphenyl 140Å 1.9µm, 2.1 x 50mm, ea.

EUR 804.00

Will be procured as soon as possible

Product Number: RT-9409252
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 1.9 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 50 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 804.00

Will be procured as soon as possible

RT-9409312

Pinnacle DB Biphenyl 140Å 3µm, 2.1 x 100mm, ea.

EUR 626.00

Will be procured as soon as possible

Product Number: RT-9409312
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 626.00

Will be procured as soon as possible

RT-9409312-700 Pinnacle DB Biphenyl 140Å 3µm, 2.1 x 100mm (Trident), ea. Price on request

Product Number: RT-9409312-700
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9409315

Pinnacle DB Biphenyl 140Å 3µm, 4.6 x 100mm, ea.

EUR 706.00

Will be procured as soon as possible

Product Number: RT-9409315
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 706.00

Will be procured as soon as possible

RT-9409315-700 Pinnacle DB Biphenyl 140Å 3µm, 4.6 x 100mm (Trident), ea. Price on request

Product Number: RT-9409315-700
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-940931E

Pinnacle DB Biphenyl 140Å 3µm, 3.0 x 100mm, ea.

EUR 626.00

Will be procured as soon as possible

Product Number: RT-940931E
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 626.00

Will be procured as soon as possible

RT-9409332

Pinnacle DB Biphenyl 140Å 3µm, 2.1 x 30mm, ea.

EUR 558.00

Will be procured as soon as possible

Product Number: RT-9409332
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 30 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 558.00

Will be procured as soon as possible

RT-9409332-700 Pinnacle DB Biphenyl 140Å 3µm, 2.1 x 30mm (Trident), ea. Price on request

Product Number: RT-9409332-700
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 30 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9409335 Pinnacle DB Biphenyl 140Å 3µm, 4.6 x 30mm, ea. Price on request

Product Number: RT-9409335
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 30 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9409335-700 Pinnacle DB Biphenyl 140Å 3µm, 4.6 x 30mm (Trident), ea. Price on request

Product Number: RT-9409335-700
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 30 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-940933E Pinnacle DB Biphenyl 140Å 3µm, 3.0 x 30mm, ea. Price on request

Product Number: RT-940933E
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 30 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9409352

Pinnacle DB Biphenyl 140Å 3µm, 2.1 x 50mm, ea.

EUR 582.00

Will be procured as soon as possible

Product Number: RT-9409352
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 50 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 582.00

Will be procured as soon as possible

RT-9409352-700 Pinnacle DB Biphenyl 140Å 3µm, 2.1 x 50mm (Trident), ea. Price on request

Product Number: RT-9409352-700
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 50 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9409355 Pinnacle DB Biphenyl 140Å 3µm, 4.6 x 50mm, ea. Price on request

Product Number: RT-9409355
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 50 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9409355-700 Pinnacle DB Biphenyl 140Å 3µm, 4.6 x 50mm (Trident), ea. Price on request

Product Number: RT-9409355-700
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 50 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-940935E

Pinnacle DB Biphenyl 140Å 3µm, 3.0 x 50mm, ea.

EUR 582.00

Will be procured as soon as possible

Product Number: RT-940935E
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 50 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 582.00

Will be procured as soon as possible

RT-9409362

Pinnacle DB Biphenyl 140Å 3µm, 2.1 x 150mm, ea.

EUR 659.00

Will be procured as soon as possible

Product Number: RT-9409362
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 150 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 659.00

Will be procured as soon as possible

RT-9409362-700 Pinnacle DB Biphenyl 140Å 3µm, 2.1 x 150mm (Trident), ea. Price on request

Product Number: RT-9409362-700
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 150 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9409365

Pinnacle DB Biphenyl 140Å 3µm, 4.6 x 150mm, ea.

EUR 847.00

Will be procured as soon as possible

Product Number: RT-9409365
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 150 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 847.00

Will be procured as soon as possible

RT-9409365-700

Pinnacle DB Biphenyl 140Å 3µm, 4.6 x 150mm (Trident), ea.

EUR 913.00

Will be procured as soon as possible

Product Number: RT-9409365-700
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 150 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 913.00

Will be procured as soon as possible

RT-940936E

Pinnacle DB Biphenyl 140Å 3µm, 3.0 x 150mm, ea.

EUR 659.00

Will be procured as soon as possible

Product Number: RT-940936E
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 3.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 150 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 659.00

Will be procured as soon as possible

RT-940950210

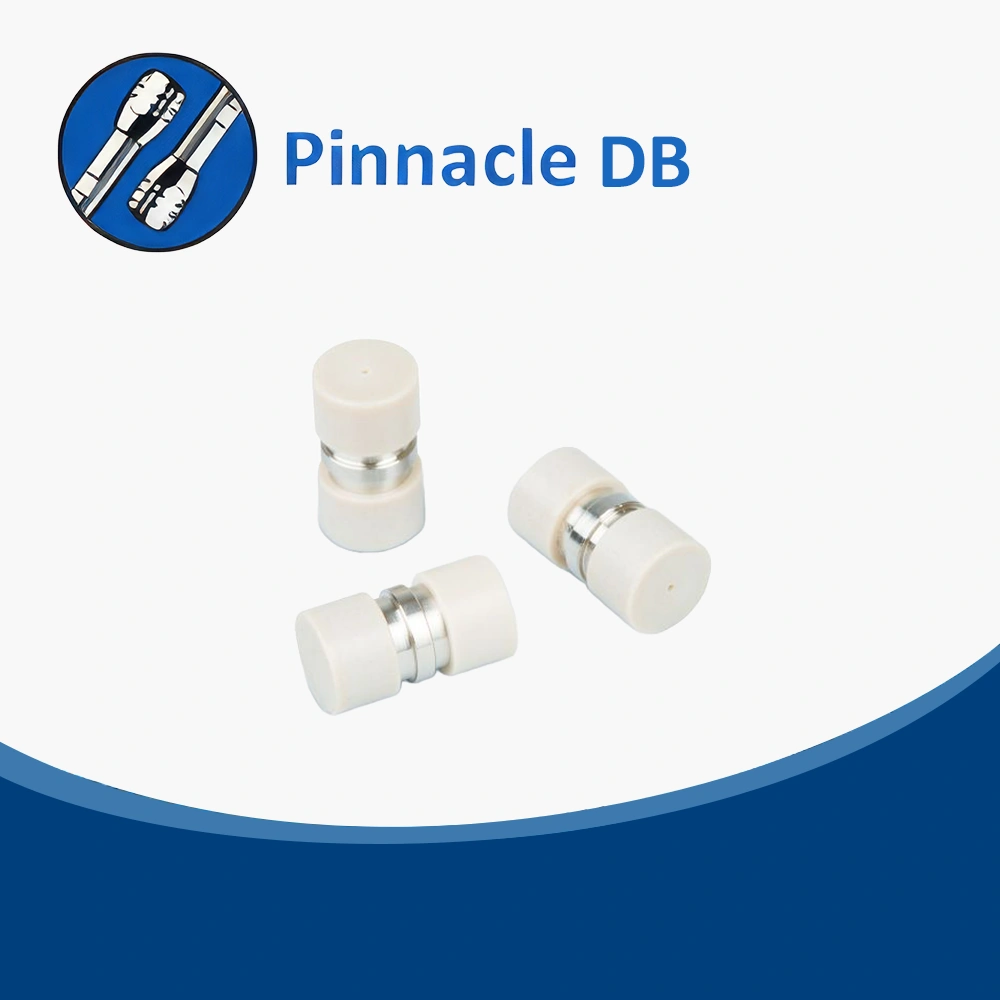

Pinnacle DB Biphenyl 140Å 5µm, 4.0 x 10mm Guard Cartridge (Trident), pk.3

EUR 254.00

Will be procured as soon as possible

Product Number: RT-940950210
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 5.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 10 mm
Column ID: 4.0 mm
Hardware Material: Stainless Steel
Hardware Type: Guard Cartridge
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Accessories: Guard Cartridge
Package Size: 3

Questions about the article To the product details

Price:

EUR 254.00

Will be procured as soon as possible

RT-940950212

Pinnacle DB Biphenyl 140Å 5µm, 2.1 x 10mm Guard Cartridge (Trident), pk.3

EUR 254.00

Will be procured as soon as possible

Product Number: RT-940950212
Manufacturer: Restek
Brand: Pinnacle DB
Selectivity: Phenyl
Selectivity Manufacturer: Biphenyl
Particle Size: 5.0 µm
Pore Volume: 0.65 mL/g
Pore Size: 140 Å
Carbon Load: 8.0 %
Endcapping: yes
Column Length: 10 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Guard Cartridge
Application: Reversed Phase
USP Code: L11
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 150 m2/g
Bonding Type: monomeric
Accessories: Guard Cartridge
Package Size: 3

Questions about the article To the product details

Price:

EUR 254.00

Will be procured as soon as possible

Restek Pinnacle DB Biphenyl 140Å Columns – Enhanced Selectivity for Aromatic Compounds

Filter products
