Restek Pinnacle DB™ & Pinnacle II™ HPLC Columns – Proven Performance for Reliable HPLC Method Development

The Restek Pinnacle DB™ and Pinnacle II™ HPLC column series combines high-performance stationary phases with premium silica technology to deliver reliable, reproducible separations for routine analysis, method development, and quality control. Designed for pharmaceutical, environmental, food, forensic, and chemical laboratories, these fully porous silica columns provide excellent efficiency, robust peak shapes, and consistent chromatographic performance.

Pinnacle DB™ columns are manufactured using high-purity, base-deactivated spherical silica optimized for both HPLC and UHPLC applications. The silica support features a 140 Å pore size and 150 m²/g surface area, providing excellent stability and reproducibility across a wide range of analytes. Available particle sizes include 1.9 µm, 3 µm, and 5 µm, allowing seamless method transfer between UHPLC and conventional HPLC systems.

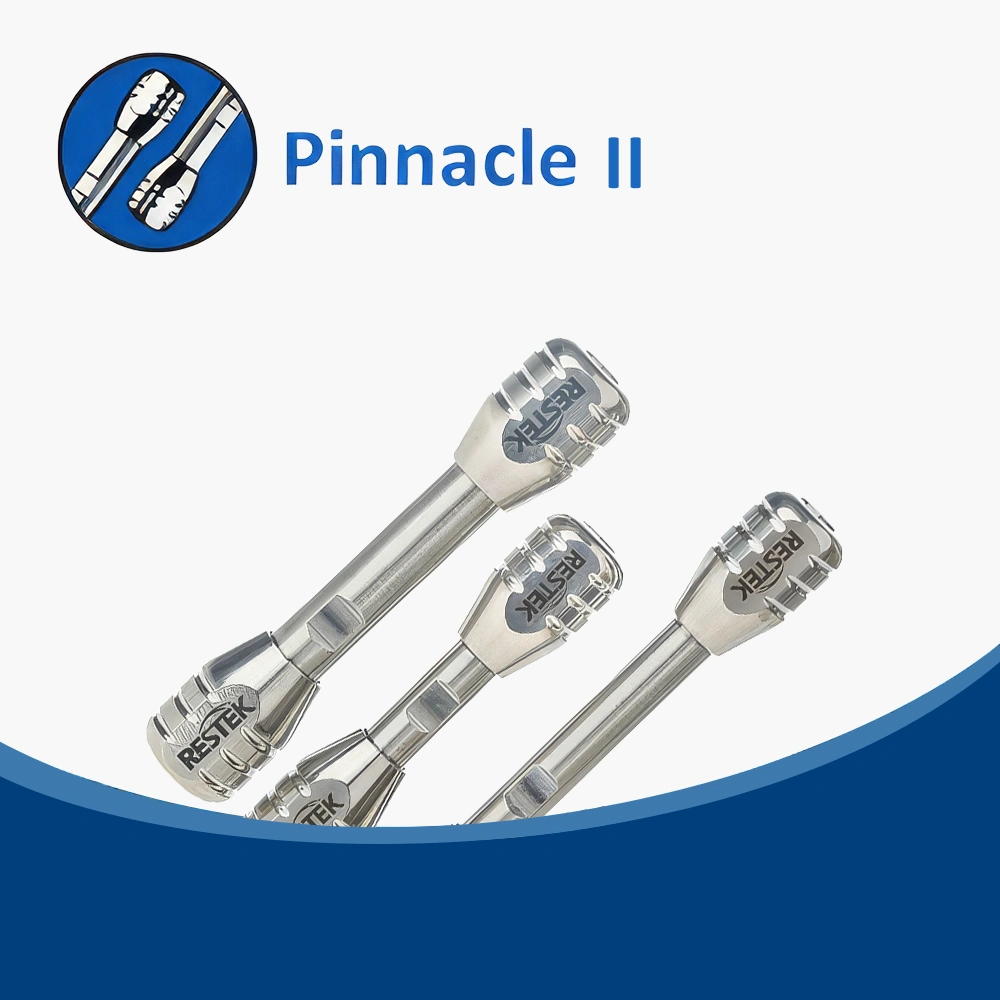

The Pinnacle II™ HPLC series is built on high-purity spherical silica with 3, 4 and 5 µm particle size and 110 Å pore size with 180 m²/g surface area, offering excellent mechanical stability, high efficiency, and outstanding batch-to-batch consistency for conventional HPLC. Available in popular reversed-phase selectivities such as C18 and C8, Pinnacle II columns provide reliable retention, excellent peak symmetry, and long column lifetime, making them ideal for routine analytical methods and validated laboratory procedures.

Key Features

High-purity spherical silica technology
Fully porous particle design
Pinnacle DB™: 1.9, 3 and 5 µm particles, 140 Å pore size
Pinnacle II™: 3, 4 and 5 µm particles, 110 Å pore size
Wide range of reversed-phase and normal-phase selectivities
Excellent reproducibility and column-to-column consistency
Optimized for pharmaceutical, food, environmental, forensic, and industrial HPLC applications

Pinnacle DB Biphenyl 140Å Series

Pinnacle DB Aqueous C18 140Å Series

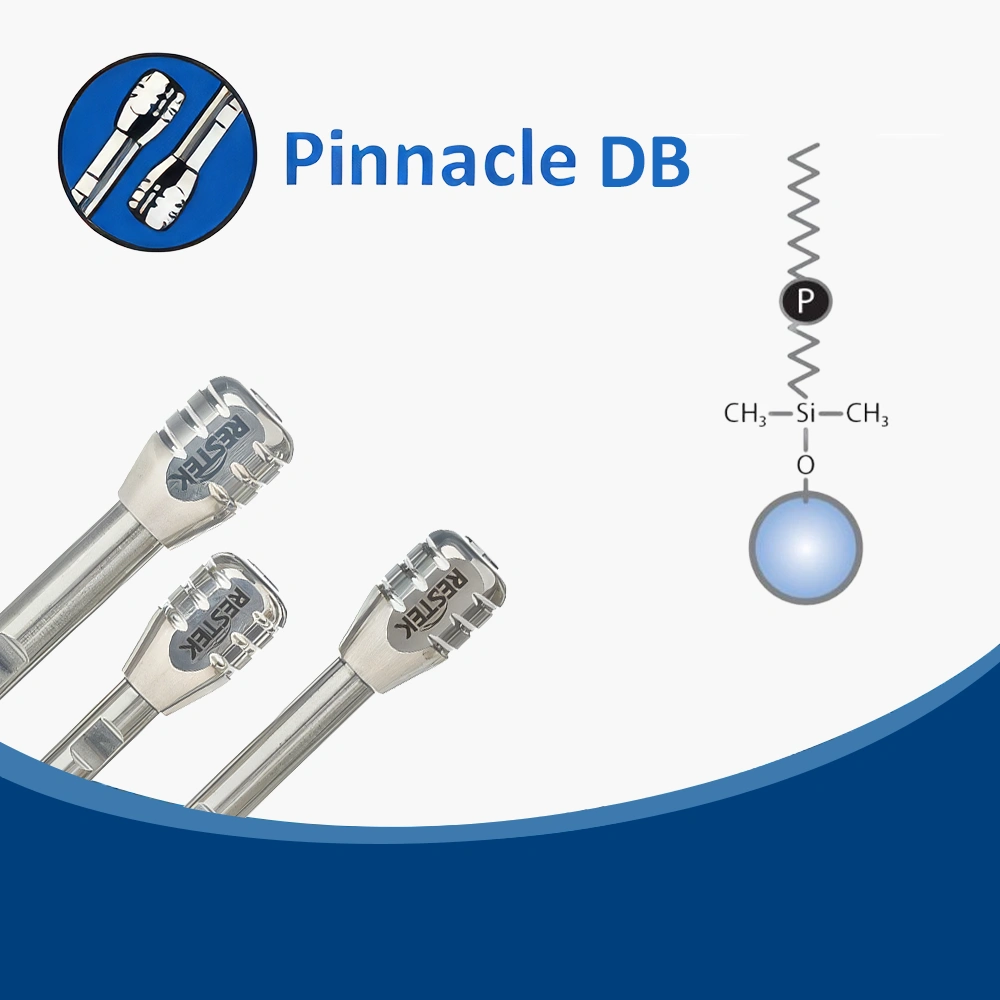

Pinnacle DB IBD 140Å Series

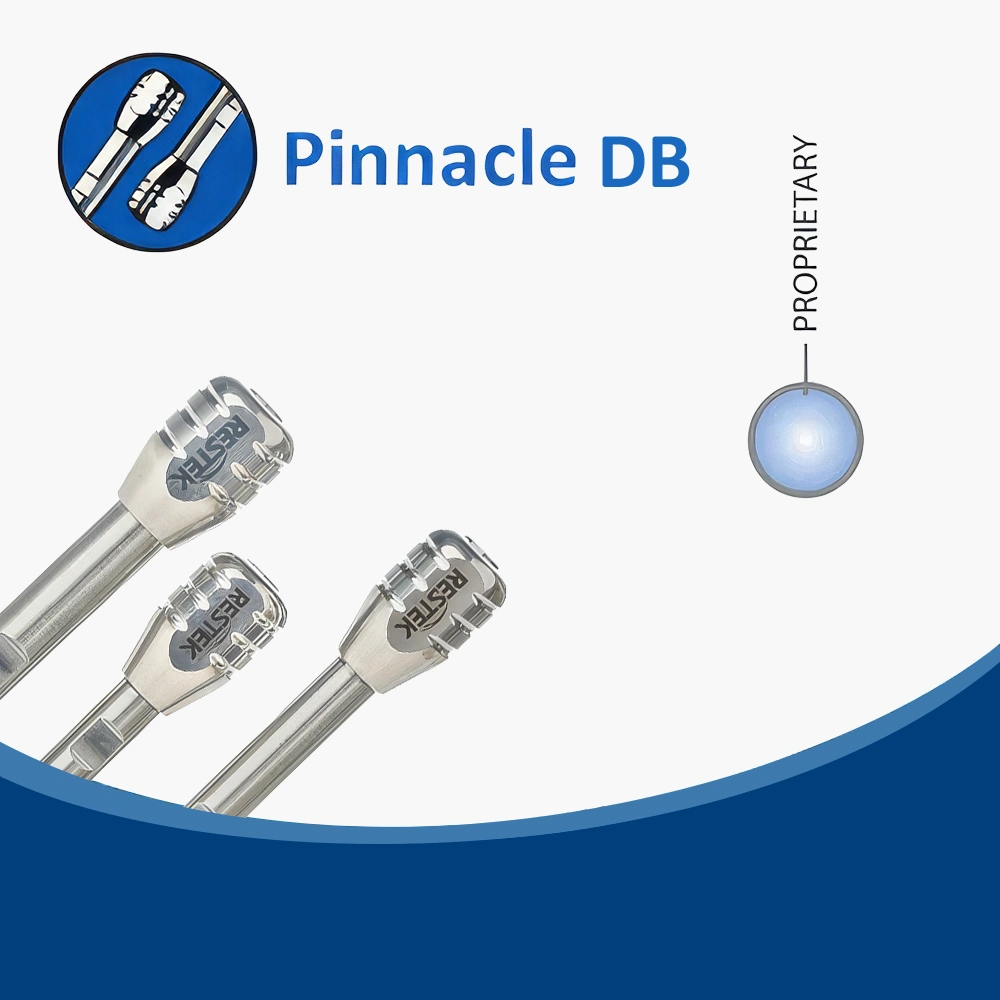

Pinnacle DB PAH 140Å Series

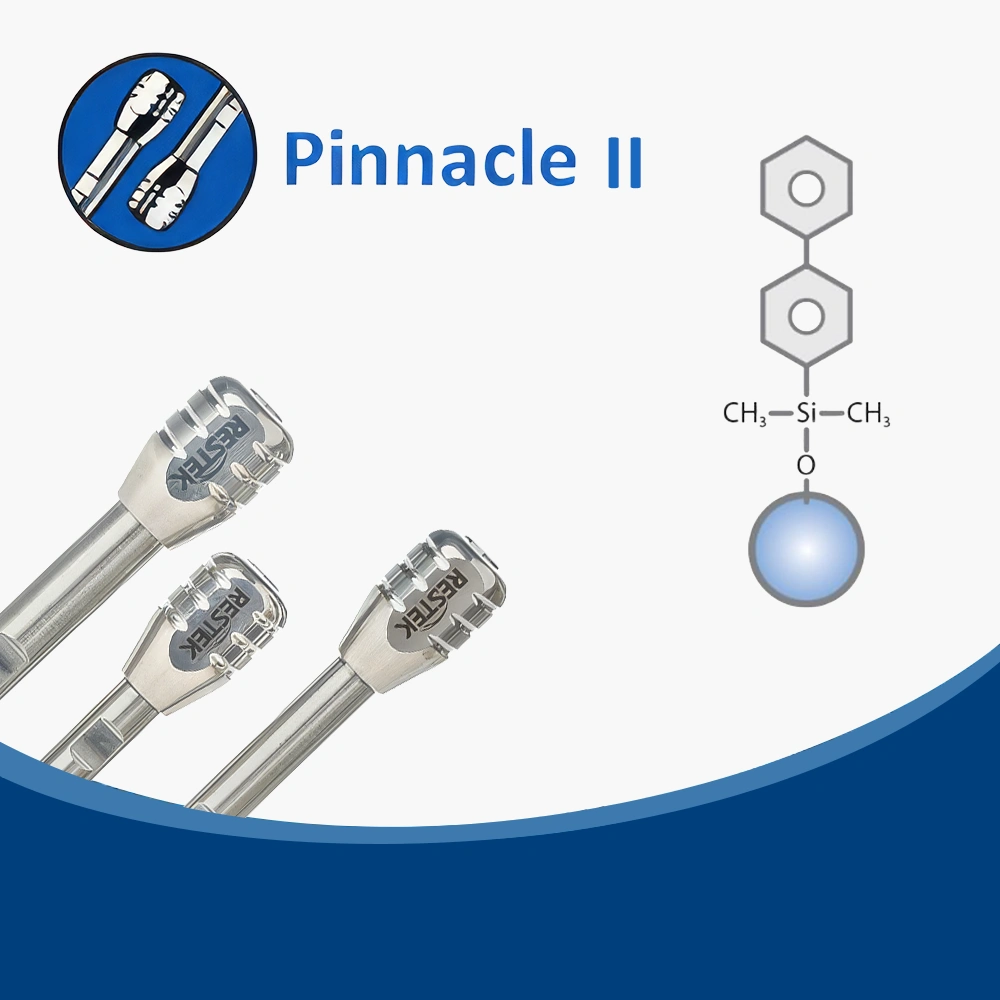

Pinnacle II Biphenyl 110Å Series

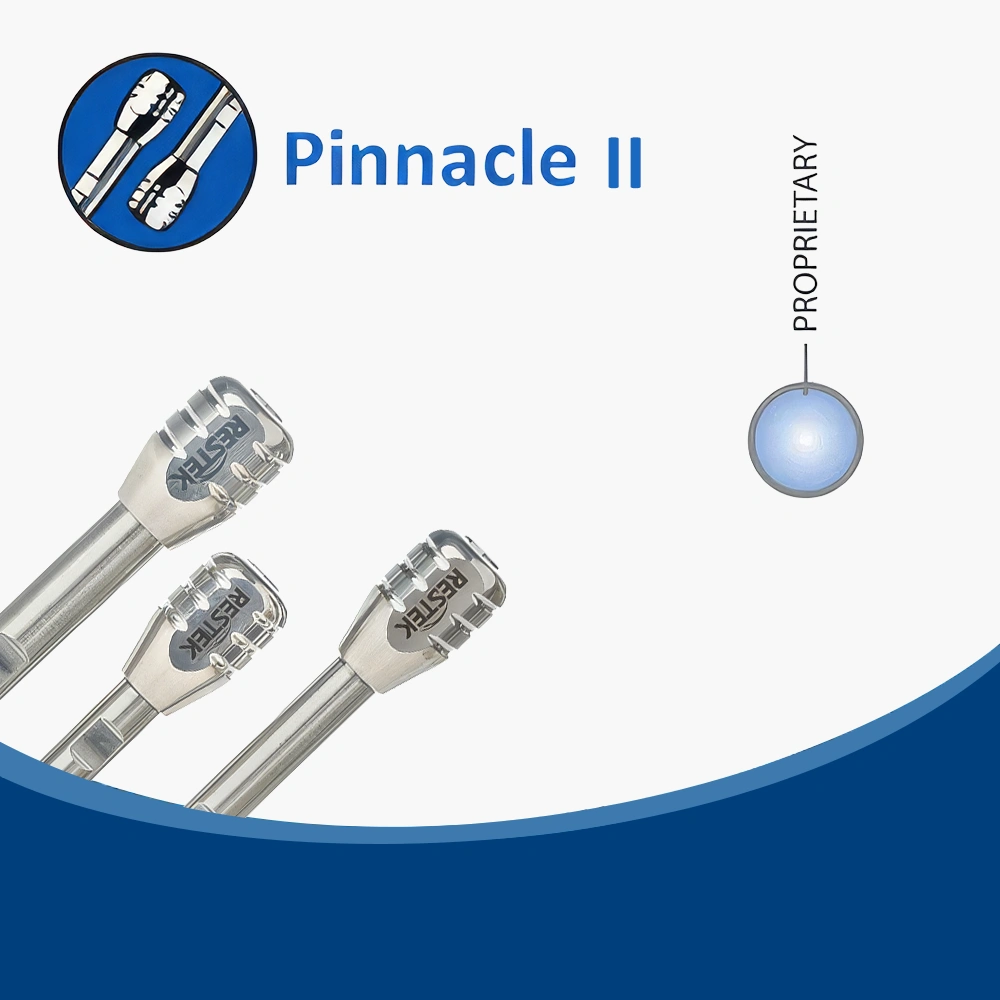

Pinnacle II PAH 110Å Series

461 Products

Product Number	Description	Price	Specifications

RT-9213515 Pinnacle II C8 110Å 5µm, 4.6 x 100mm, ea. Price on request

Product Number: RT-9213515
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9213515-700 Pinnacle II C8 110Å 5µm, 4.6 x 100mm (Trident), ea. Price on request

Product Number: RT-9213515-700
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-921351E

Pinnacle II C8 110Å 5µm, 3.0 x 100mm, ea.

EUR 592.00

Will be procured as soon as possible

Product Number: RT-921351E
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 592.00

Will be procured as soon as possible

RT-921352E

Pinnacle II C8 110Å 5µm, 3.0 x 200mm, ea.

EUR 953.00

Will be procured as soon as possible

Product Number: RT-921352E
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 200 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 953.00

Will be procured as soon as possible

RT-9213532 Pinnacle II C8 110Å 5µm, 2.1 x 30mm, ea. Price on request

Product Number: RT-9213532
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 30 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9213532-700 Pinnacle II C8 110Å 5µm, 2.1 x 30mm (Trident), ea. Price on request

Product Number: RT-9213532-700
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 30 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-921353E

Pinnacle II C8 110Å 5µm, 3.0 x 30mm, ea.

EUR 491.00

Will be procured as soon as possible

Product Number: RT-921353E
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 30 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 491.00

Will be procured as soon as possible

RT-921355E

Pinnacle II C8 110Å 5µm, 3.0 x 50mm, ea.

EUR 517.00

Will be procured as soon as possible

Product Number: RT-921355E
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 50 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 517.00

Will be procured as soon as possible

RT-9213562

Pinnacle II C8 110Å 5µm, 2.1 x 150mm, ea.

EUR 591.00

Will be procured as soon as possible

Product Number: RT-9213562
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 150 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 591.00

Will be procured as soon as possible

RT-9213564

Pinnacle II C8 110Å 5µm, 4.0 x 150mm, ea.

EUR 682.00

Will be procured as soon as possible

Product Number: RT-9213564
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 150 mm
Column ID: 4.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 682.00

Will be procured as soon as possible

RT-9213565

Pinnacle II C8 110Å 5µm, 4.6 x 150mm, ea.

EUR 932.00

Will be procured as soon as possible

Product Number: RT-9213565
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 150 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 932.00

Will be procured as soon as possible

RT-9213565-700

Pinnacle II C8 110Å 5µm, 4.6 x 150mm (Trident), ea.

EUR 987.00

Will be procured as soon as possible

Product Number: RT-9213565-700
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 150 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 987.00

Will be procured as soon as possible

RT-921356E

Pinnacle II C8 110Å 5µm, 3.0 x 150mm, ea.

EUR 767.00

Will be procured as soon as possible

Product Number: RT-921356E
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 150 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 767.00

Will be procured as soon as possible

RT-9213572 Pinnacle II C8 110Å 5µm, 2.1 x 250mm, ea. Price on request

Product Number: RT-9213572
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 250 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9213572-700 Pinnacle II C8 110Å 5µm, 2.1 x 250mm (Trident), ea. Price on request

Product Number: RT-9213572-700
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 250 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9213575

Pinnacle II C8 110Å 5µm, 4.6 x 250mm, ea.

EUR 956.00

Will be procured as soon as possible

Product Number: RT-9213575
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 250 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 956.00

Will be procured as soon as possible

RT-9213575-700 Pinnacle II C8 110Å 5µm, 4.6 x 250mm (Trident), ea. Price on request

Product Number: RT-9213575-700
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 250 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-921357E

Pinnacle II C8 110Å 5µm, 3.0 x 250mm, ea.

EUR 875.00

Will be procured as soon as possible

Product Number: RT-921357E
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C8
Particle Size: 5.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 7.0 %
Endcapping: yes
Column Length: 250 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L7
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 875.00

Will be procured as soon as possible

RT-9214312

Pinnacle II C18 110Å 3µm, 2.1 x 100mm, ea.

EUR 611.00

Will be procured as soon as possible

Product Number: RT-9214312
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C18
Particle Size: 3.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 13.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L1
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 611.00

Will be procured as soon as possible

RT-9214312-700 Pinnacle II C18 110Å 3µm, 2.1 x 100mm (Trident), ea. Price on request

Product Number: RT-9214312-700
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C18
Particle Size: 3.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 13.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 2.1 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L1
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-9214315

Pinnacle II C18 110Å 3µm, 4.6 x 100mm, ea.

EUR 833.00

Will be procured as soon as possible

Product Number: RT-9214315
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C18
Particle Size: 3.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 13.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L1
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 833.00

Will be procured as soon as possible

RT-9214315-700 Pinnacle II C18 110Å 3µm, 4.6 x 100mm (Trident), ea. Price on request

Product Number: RT-9214315-700
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C18
Particle Size: 3.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 13.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L1
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-921431E

Pinnacle II C18 110Å 3µm, 3.0 x 100mm, ea.

EUR 750.00

Will be procured as soon as possible

Product Number: RT-921431E
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C18
Particle Size: 3.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 13.0 %
Endcapping: yes
Column Length: 100 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L1
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 750.00

Will be procured as soon as possible

RT-9214335 Pinnacle II C18 110Å 3µm, 4.6 x 30mm, ea. Price on request

Product Number: RT-9214335
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C18
Particle Size: 3.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 13.0 %
Endcapping: yes
Column Length: 30 mm
Column ID: 4.6 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L1
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

RT-921433E

Pinnacle II C18 110Å 3µm, 3.0 x 30mm, ea.

EUR 507.00

Will be procured as soon as possible

Product Number: RT-921433E
Manufacturer: Restek
Brand: Pinnacle II
Selectivity: C18
Particle Size: 3.0 µm
Pore Volume: 0.60 mL/g
Pore Size: 110 Å
Carbon Load: 13.0 %
Endcapping: yes
Column Length: 30 mm
Column ID: 3.0 mm
Hardware Material: Stainless Steel
Hardware Type: Analytical Column
Application: Reversed Phase
USP Code: L1
Temperature Range: 80 °C
pH Range: 2.5-8
Particle: Silica
Particle Shape: Spherical
Particle Type: Fully Porous
Surface Area: 180 m2/g
Bonding Type: monomeric
Package Size: 1

Questions about the article To the product details

Price:

EUR 507.00

Will be procured as soon as possible

The Pinnacle DB product family offers a broad selection of stationary phase chemistries to maximize chromatographic selectivity, including:

C18 – General-purpose reversed-phase separations with excellent versatility.
Biphenyl – Enhanced π-π interactions and superior selectivity for aromatic, conjugated, and LC-MS applications.
IBD (Polar Embedded) – Excellent retention of polar compounds, compatible with 100% aqueous mobile phases, and suitable for both reversed-phase and HILIC conditions.
– Alternative selectivity for both reversed-phase and normal-phase chromatography.
Silica – High-performance normal-phase separations.
Additional specialty phases for optimized selectivity across diverse analytical applications.

Restek Pinnacle DB™ & Pinnacle II™ HPLC Columns – Proven Performance for Reliable HPLC Method Development

Key Features

Filter products
