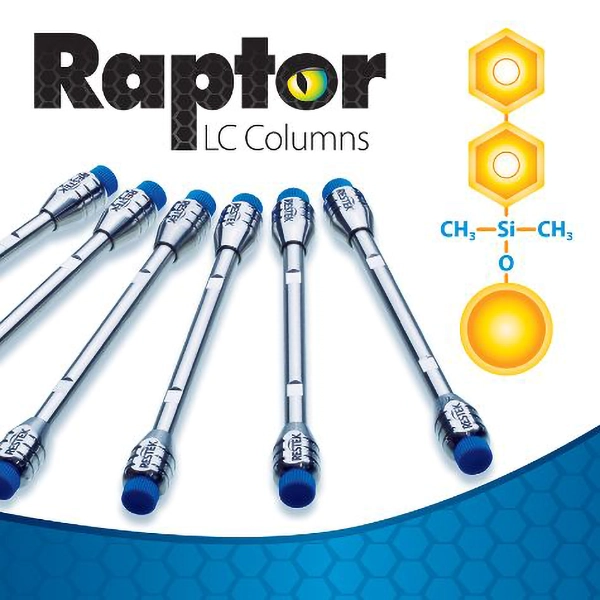

Restek Raptor™ Biphenyl 90 Å HPLC Columns
Exceptional Selectivity for Aromatic and Structurally Related Compounds
The Restek Raptor™ Biphenyl 90 Å HPLC column series combines an advanced biphenyl stationary phase with Restek's 2.7 µm superficially porous (core-shell) particle technology to deliver exceptional chromatographic efficiency, outstanding peak shape, and unique selectivity for aromatic compounds. Designed for both conventional HPLC and UHPLC systems, these columns provide fast, highly reproducible separations while maintaining moderate operating backpressure.
Unlike traditional C18 stationary phases that rely primarily on hydrophobic interactions, the Raptor Biphenyl phase utilizes additional π-π interactions, dipole interactions, and steric (shape) selectivity. These complementary retention mechanisms significantly enhance the separation of structurally similar compounds, positional isomers, and conjugated aromatic molecules that are often difficult to resolve using conventional reversed-phase chromatography.
The proprietary bonded phase chemistry is highly stable, providing excellent reproducibility and long column lifetime for both routine quality control and demanding analytical method development.
Key Benefits
- Proprietary biphenyl stationary phase offering unique aromatic selectivity.
- Enhanced π-π interactions improve the resolution of aromatic analytes and closely related structural isomers.
- Excellent retention of moderately polar aromatic compounds without excessive hydrophobic retention.
- Outstanding peak symmetry for acidic, basic, and neutral compounds.
- High efficiency through 2.7 µm superficially porous particle technology.
- Fast analysis with reduced backpressure compared to fully porous sub-2 µm particles.
- Fully compatible with HPLC, UHPLC, and LC-MS/MS platforms.
- Robust performance suitable for high-throughput analytical laboratories.
- Excellent reproducibility from batch to batch and over extended column lifetime.
Find more information in the Restek Raptor Biphenyl Brochure.
| Product Number | Description | Price | Specifications |
|---|
| RT-9309212 | Raptor Biphenyl 90Å 1.8µm, 2.1 x 100mm, ea. |
EUR 1,125.00
Will be procured as soon as possible |
- Product Number: RT-9309212
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 1.8 µm
- Pore Size: 90 Å
- Carbon Load: 7.0 %
- Endcapping: yes
- Column Length: 100 mm
- Column ID: 2.1 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 125 m2/g
- Bonding Type: monomeric
- Package Size: 1
Questions about the article
To the product details
Will be procured as soon as possible
| RT-930921E | Raptor Biphenyl 90Å 1.8µm, 3.0 x 100mm, ea. |
EUR 1,125.00
Will be procured as soon as possible |
- Product Number: RT-930921E
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 1.8 µm
- Pore Size: 90 Å
- Carbon Load: 7.0 %
- Endcapping: yes
- Column Length: 100 mm
- Column ID: 3.0 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 125 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-9309232 | Raptor Biphenyl 90Å 1.8µm, 2.1 x 30mm, ea. |
EUR 995.00
Will be procured as soon as possible |
- Product Number: RT-9309232
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 1.8 µm
- Pore Size: 90 Å
- Carbon Load: 7.0 %
- Endcapping: yes
- Column Length: 30 mm
- Column ID: 2.1 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 125 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-9309252 | Raptor Biphenyl 90Å 1.8µm, 2.1 x 50mm, ea. |
EUR 1,081.00
Will be procured as soon as possible |
- Product Number: RT-9309252
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 1.8 µm
- Pore Size: 90 Å
- Carbon Load: 7.0 %
- Endcapping: yes
- Column Length: 50 mm
- Column ID: 2.1 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 125 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-930925E | Raptor Biphenyl 90Å 1.8µm, 3.0 x 50mm, ea. |
EUR 1,081.00
Will be procured as soon as possible |
- Product Number: RT-930925E
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 1.8 µm
- Pore Size: 90 Å
- Carbon Load: 7.0 %
- Endcapping: yes
- Column Length: 50 mm
- Column ID: 3.0 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 125 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-9309262 | Raptor Biphenyl 90Å 1.8µm, 2.1 x 150mm, ea. |
EUR 1,153.00
Will be procured as soon as possible |
- Product Number: RT-9309262
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 1.8 µm
- Pore Size: 90 Å
- Carbon Load: 7.0 %
- Endcapping: yes
- Column Length: 150 mm
- Column ID: 2.1 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 125 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-930950250 | Raptor Biphenyl 90Å 5µm, 4.6 x 5mm Guard Cartridge (EXP), pk.3 |
EUR 724.00
Will be procured as soon as possible |
- Product Number: RT-930950250
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 5 mm
- Column ID: 4.6 mm
- Hardware Material: Stainless Steel
- Hardware Type: Guard Cartridge
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Accessories: Guard Cartridge
- Package Size: 3
Will be procured as soon as possible
| RT-930950252 | Raptor Biphenyl 90Å 5µm, 2.1 x 5mm Guard Cartridge (EXP), pk.3 |
EUR 684.00
Will be procured as soon as possible |
- Product Number: RT-930950252
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 5 mm
- Column ID: 2.1 mm
- Hardware Material: Stainless Steel
- Hardware Type: Guard Cartridge
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Accessories: Guard Cartridge
- Package Size: 3
Will be procured as soon as possible
| RT-930950253 | Raptor Biphenyl 90Å 5µm, 3.0 x 5mm Guard Cartridge (EXP), pk.3 |
EUR 684.00
Will be procured as soon as possible |
- Product Number: RT-930950253
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 5 mm
- Column ID: 3.0 mm
- Hardware Material: Stainless Steel
- Hardware Type: Guard Cartridge
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Accessories: Guard Cartridge
- Package Size: 3
Will be procured as soon as possible
| RT-9309512 | Raptor Biphenyl 90Å 5µm, 2.1 x 100mm, ea. |
EUR 847.00
Will be procured as soon as possible |
- Product Number: RT-9309512
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 100 mm
- Column ID: 2.1 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-9309515 | Raptor Biphenyl 90Å 5µm, 4.6 x 100mm, ea. |
EUR 847.00
Will be procured as soon as possible |
- Product Number: RT-9309515
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 100 mm
- Column ID: 4.6 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-930951E | Raptor Biphenyl 90Å 5µm, 3.0 x 100mm, ea. |
EUR 848.00
Will be procured as soon as possible |
- Product Number: RT-930951E
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 100 mm
- Column ID: 3.0 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-930953E | Raptor Biphenyl 90Å 5µm, 3.0 x 30mm, ea. |
EUR 700.00
Will be procured as soon as possible |
- Product Number: RT-930953E
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 30 mm
- Column ID: 3.0 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-9309552 | Raptor Biphenyl 90Å 5µm, 2.1 x 50mm, ea. |
EUR 773.00
Will be procured as soon as possible |
- Product Number: RT-9309552
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 50 mm
- Column ID: 2.1 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-9309555 | Raptor Biphenyl 90Å 5µm, 4.6 x 50mm, ea. |
EUR 773.00
Will be procured as soon as possible |
- Product Number: RT-9309555
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 50 mm
- Column ID: 4.6 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-930955E | Raptor Biphenyl 90Å 5µm, 3.0 x 50mm, ea. |
EUR 773.00
Will be procured as soon as possible |
- Product Number: RT-930955E
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 50 mm
- Column ID: 3.0 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-9309562 | Raptor Biphenyl 90Å 5µm, 2.1 x 150mm, ea. |
EUR 919.00
Will be procured as soon as possible |
- Product Number: RT-9309562
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 150 mm
- Column ID: 2.1 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-9309565 | Raptor Biphenyl 90Å 5µm, 4.6 x 150mm, ea. |
EUR 919.00
Will be procured as soon as possible |
- Product Number: RT-9309565
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 150 mm
- Column ID: 4.6 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-930956E | Raptor Biphenyl 90Å 5µm, 3.0 x 150mm, ea. |
EUR 919.00
Will be procured as soon as possible |
- Product Number: RT-930956E
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 150 mm
- Column ID: 3.0 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-9309575 | Raptor Biphenyl 90Å 5µm, 4.6 x 250mm, ea. |
EUR 1,100.00
Will be procured as soon as possible |
- Product Number: RT-9309575
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 5.0 µm
- Pore Size: 90 Å
- Carbon Load: 5.0 %
- Endcapping: yes
- Column Length: 250 mm
- Column ID: 4.6 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 100 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-9309A0250 | Raptor Biphenyl 90Å 2.7µm, 4.6 x 5mm Guard Cartridge (EXP), pk.3 |
EUR 692.00
Will be procured as soon as possible |
- Product Number: RT-9309A0250
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 2.7 µm
- Pore Volume: 0.30 mL/g
- Pore Size: 90 Å
- Carbon Load: 7.0 %
- Endcapping: yes
- Column Length: 5 mm
- Column ID: 4.6 mm
- Hardware Material: Stainless Steel
- Hardware Type: Guard Cartridge
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 130 m2/g
- Bonding Type: monomeric
- Accessories: Guard Cartridge
- Package Size: 3
Will be procured as soon as possible
| RT-9309A0252 | Raptor Biphenyl 90Å 2.7µm, 2.1 x 5mm Guard Cartridge (EXP), pk.3 |
EUR 692.00
Will be procured as soon as possible |
- Product Number: RT-9309A0252
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 2.7 µm
- Pore Volume: 0.30 mL/g
- Pore Size: 90 Å
- Carbon Load: 7.0 %
- Endcapping: yes
- Column Length: 5 mm
- Column ID: 2.1 mm
- Hardware Material: Stainless Steel
- Hardware Type: Guard Cartridge
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 130 m2/g
- Bonding Type: monomeric
- Accessories: Guard Cartridge
- Package Size: 3
Will be procured as soon as possible
| RT-9309A0253 | Raptor Biphenyl 90Å 2.7µm, 3.0 x 5mm Guard Cartridge (EXP), pk.3 |
EUR 692.00
Will be procured as soon as possible |
- Product Number: RT-9309A0253
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 2.7 µm
- Pore Volume: 0.30 mL/g
- Pore Size: 90 Å
- Carbon Load: 7.0 %
- Endcapping: yes
- Column Length: 5 mm
- Column ID: 3.0 mm
- Hardware Material: Stainless Steel
- Hardware Type: Guard Cartridge
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 130 m2/g
- Bonding Type: monomeric
- Accessories: Guard Cartridge
- Package Size: 3
Will be procured as soon as possible
| RT-9309A12 | Raptor Biphenyl 90Å 2.7µm, 2.1 x 100mm, ea. |
EUR 993.00
Will be procured as soon as possible |
- Product Number: RT-9309A12
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 2.7 µm
- Pore Volume: 0.30 mL/g
- Pore Size: 90 Å
- Carbon Load: 7.0 %
- Endcapping: yes
- Column Length: 100 mm
- Column ID: 2.1 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 130 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
| RT-9309A15 | Raptor Biphenyl 90Å 2.7µm, 4.6 x 100mm, ea. |
EUR 993.00
Will be procured as soon as possible |
- Product Number: RT-9309A15
- Manufacturer: Restek
- Brand: Raptor
- Selectivity: Phenyl
- Selectivity Manufacturer: Biphenyl
- Particle Size: 2.7 µm
- Pore Volume: 0.30 mL/g
- Pore Size: 90 Å
- Carbon Load: 7.0 %
- Endcapping: yes
- Column Length: 100 mm
- Column ID: 4.6 mm
- Hardware Material: Stainless Steel
- Hardware Type: Analytical Column
- Application: Reversed Phase
- USP Code: L11
- Temperature Range: 80 °C
- pH Range: 2-8
- Particle: Silica
- Particle Shape: Spherical
- Particle Type: Core-Shell
- Surface Area: 130 m2/g
- Bonding Type: monomeric
- Package Size: 1
Will be procured as soon as possible
Typical Applications
The Raptor Biphenyl stationary phase is particularly advantageous whenever additional aromatic selectivity is required beyond the capabilities of conventional C18 columns.
Typical applications include:
- Pharmaceutical active ingredients (APIs)
- Pharmaceutical impurities and degradation products
- Stability-indicating methods
- Positional, structural, and stereoisomer separations
- Veterinary drug residue analysis
- Pesticide multi-residue methods
- Polycyclic aromatic hydrocarbons (PAHs)
- Phenolic compounds
- Flavonoids and other natural products
- Mycotoxins
- Clinical and forensic toxicology
- Environmental contaminants
- Food safety testing
Its unique selectivity frequently allows baseline separation of analytes that co-elute on standard C18 columns, reducing the need for complex gradient optimization or alternative chromatographic methods.
Technical Specifications
| Specification | Description |
|---|---|
| Stationary Phase | Proprietary Biphenyl bonded phase |
| Particle Technology | Superficially Porous (Core-Shell) Silica |
| Particle Size | 2.7 µm |
| Pore Size | 90 Å |
| Carbon Load | Optimized for balanced hydrophobic and aromatic selectivity |
| Separation Mechanism | Hydrophobic interactions, π-π interactions, dipole interactions, steric (shape) selectivity |
| USP Classification | L11 |
| Recommended pH Range | 2.0–8.0 |
| Maximum Operating Pressure | Suitable for UHPLC and HPLC systems (instrument dependent) |
| Mobile Phase Compatibility | Water, methanol, acetonitrile, buffered mobile phases, LC-MS compatible solvents |
| Available Column Dimensions | Multiple analytical and UHPLC formats available |
Why Choose Raptor™ Biphenyl?
The Raptor Biphenyl 90 Å series provides an ideal balance of efficiency, selectivity, and robustness for laboratories that routinely analyze aromatic compounds. The combination of a highly selective biphenyl ligand with advanced core-shell particle technology enables faster method development, shorter analysis times, and improved chromatographic resolution without compromising system compatibility.
Whether applied in pharmaceutical research, environmental monitoring, food safety, forensic science, or clinical analysis, the Restek Raptor™ Biphenyl 90 Å consistently delivers superior performance for challenging aromatic separations.
Available Column Dimensions
The Raptor Biphenyl 90 Å series is available in a wide range of dimensions to support method development, routine analysis, and high-throughput workflows.
- Lengths: 30, 50, 100 and 150 mm
- Internal Diameters:2.1, 3.0 and 4.6 mm
- Particle Size: 2.7 µm
- Pore Size: 90 Å
This broad selection allows straightforward method transfer between UHPLC and conventional HPLC systems while maintaining chromatographic performance and analytical robustness.
