Union, PEEK, 2-56 Thread, bore 150µm, for 360µm OD FS & PEEK Tubing, ea.
- Part Number: 202009
- OEM Number: JR-C360UPK6
- Unit: EA
EUR 72.90
Price excl. VAT plus shipping costs
Will be procured as soon as possible
Union, PEEK, 2-56 Thread, bore 150µm, for 360µm OD FS & PEEK Tubing, ea.
Union, PEEK, 2-56 conical Thread, thru bore 150µm, with Fittings, for 360µm OD Fused Silica & PEEK Tubing, maximum pressure 690bar, ea.
| Manufacturer: | BGB Analytik |
|---|---|
| Connector Type: | Union |
| Design: | One-Piece |
| Port Style: | Conical |
| Port Type: | Universal |
| Head Type: | Fingertight Body |
| Raw Material: | PEEK |
| Tubing Type: | 360 µm OD |
| Body Length: | 10.5 mm |
| Bore Size: | 0.15 mm |
| Color: | Natural |
| Thread #1: | 2-56 UNF |
| Thread #1 Type: | female |
| Thread #2: | 2-56 UNF |
| Thread #2 Type: | female |
| max Pressure (bar): | 690 bar |
| max Pressure (psi): | 10'000 psi |
| Connector Application: | HPLC |
| Package Size: | 1 |
Related Products
-
Fitting, PEEK, Hex-Head No-Twist, 2-56 Thread, for 360µm OD FS/PEEK Tubing, ea. -

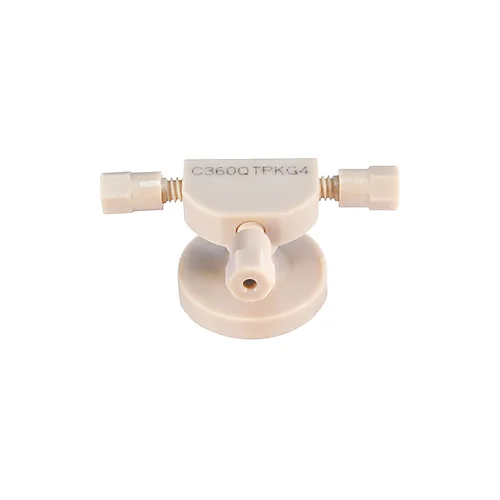

Tee, PEEK, 2-56 Thread, bore 150µm, for 360µm OD Fused Silica & PEEK Tubing, ea. -

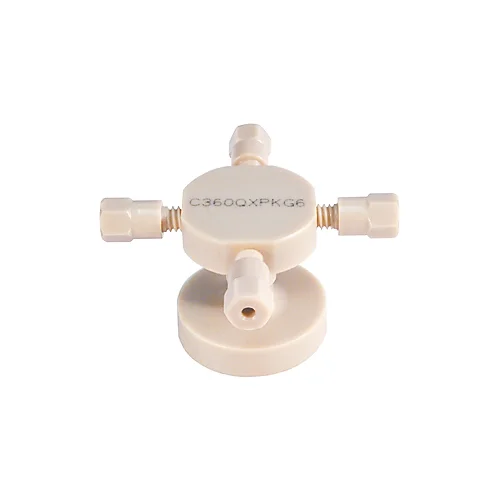

Cross, PEEK, 2-56 Thread, bore 150µm, for 360µm OD FS & PEEK Tubing, ea. -
