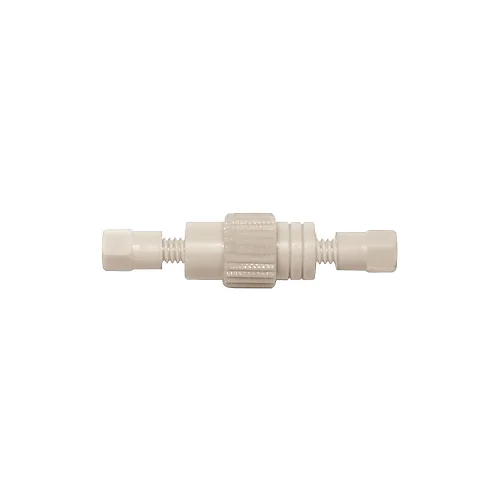

Reducing Union, PEEK, 1/16" 10-32 to 360µm 2-56 Thread, bore 0.15mm, ea.
- Part Number: 202010
- OEM Number: JR-C360RU1PK6
- Unit: EA
EUR 71.60
Price excl. VAT plus shipping costs
Available
Reducing Union, PEEK, 1/16" 10-32 to 360µm 2-56 Thread, bore 0.15mm, ea.
Reducing Union, PEEK, 1/16" 10-32 conical to 360µm 2-56 conical Thread, with Fittings, thru bore 0.15mm, maximum pressure 350bar, ea.
| Manufacturer: | BGB Analytik |
|---|---|
| Connector Type: | Reducing Union |
| Design: | One-Piece |
| Port Style: | Conical |
| Port Type: | Universal |
| Head Type: | Hex-Head |
| Raw Material: | PEEK |
| Tubing Type: | 1/16" OD |
| Head Diameter: | 1/4" |
| Body Length: | 15.85 mm |
| Bore Size: | 0.15 mm |
| Length Type: | Standard |
| Color: | Natural |
| Thread #1: | 10-32 UNF |
| Thread #1 Type: | female |
| Thread #2: | 2-56 UNF |
| Thread #2 Type: | female |
| max Pressure (bar): | 345 bar |
| max Pressure (psi): | 5'000 psi |
| Connector Application: | HPLC |
| Package Size: | 1 |
