Union, SS, 2-56 Thread, bore 50µm, with Fittings, for 360µm OD FS Tubing, ea.
- Part Number: 202022
- OEM Number: JR-C360UFS2
- Unit: EA
EUR 208.10
Price excl. VAT plus shipping costs
Available
Union, SS, 2-56 Thread, bore 50µm, with Fittings, for 360µm OD FS Tubing, ea.
Union, Stainless Steel (SS), 2-56 conical Thread, thru bore 50µm, with Fittings, for 360µm OD Fused Silica Tubing, maximum pressure 690bar, ea.
| Manufacturer: | BGB Analytik |
|---|---|
| Connector Type: | Union |
| Port Style: | Conical |
| Port Type: | Valco Type |
| Head Type: | Hex-Head Body |
| Raw Material: | Stainless Steel (SS) |
| Tubing Type: | 360 µm OD |
| Bore Size: | 0.05 mm |
| Length Type: | Standard |
| Color: | Natural |
| Thread #1: | 2-56 UNF |
| Thread #1 Type: | female |
| Thread #2: | 2-56 UNF |
| Thread #2 Type: | female |
| max Pressure (bar): | 690 bar |
| max Pressure (psi): | 10'000 psi |
| Connector Application: | HPLC |
| Package Size: | 1 |
Related Products
-

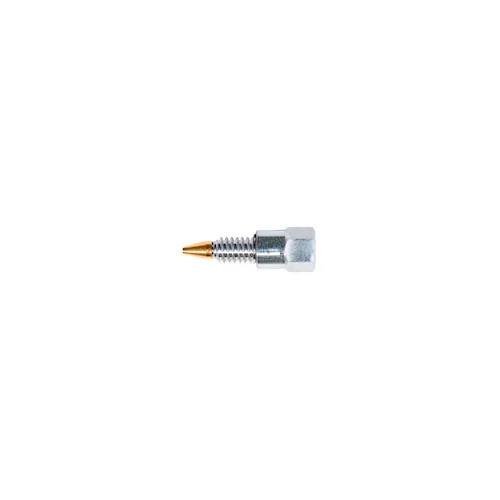

Fitting, SS, Hex-Head No-Twist, 2-56 Thread, for 360µm OD FS Tubing, ea. -

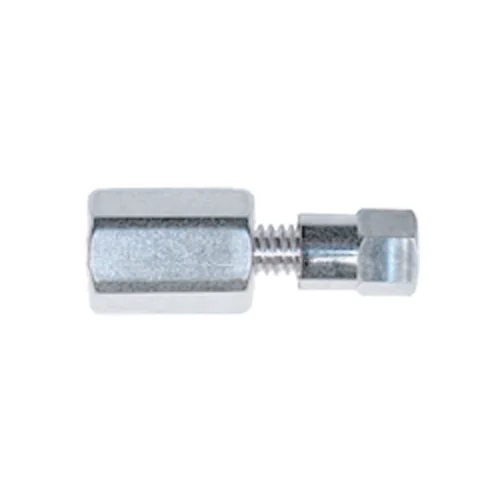

Cap, SS, Hex-Head, for 2-56 Thread, for Fused Silica Tubing, ea. -
