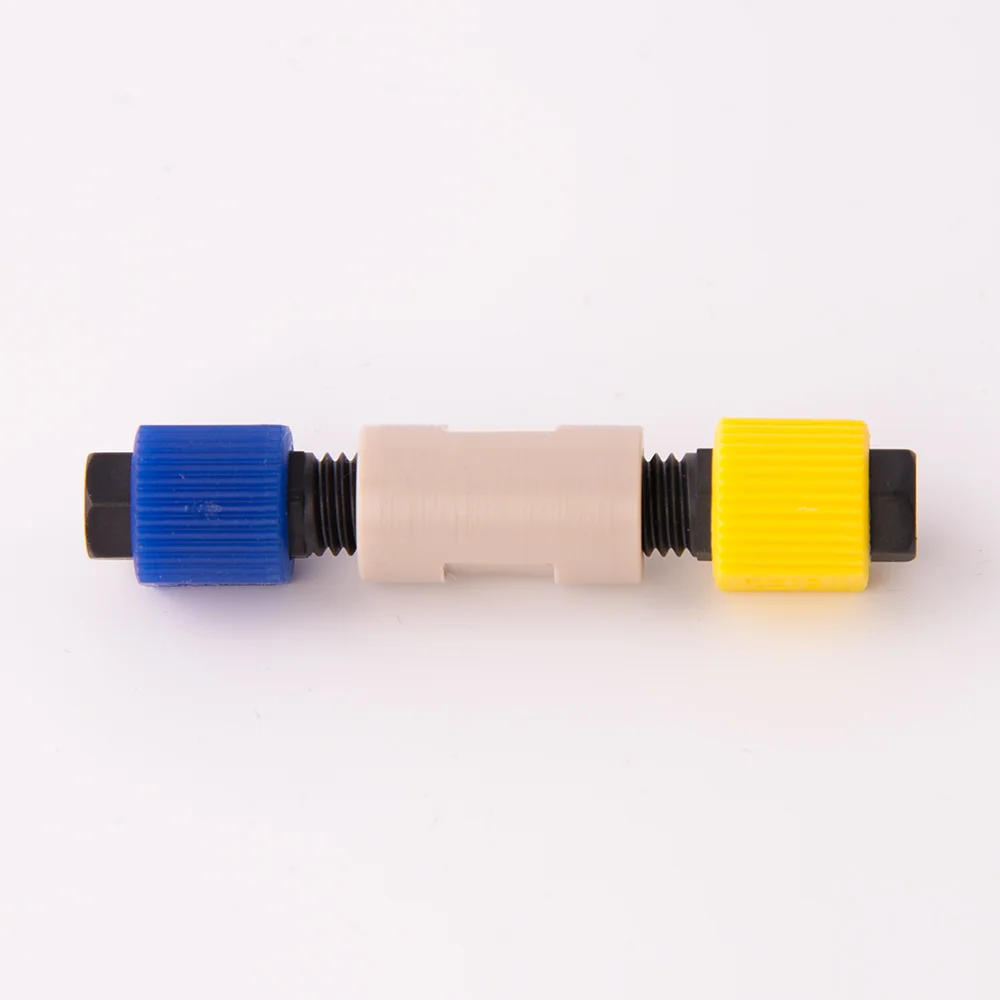

Union, PEEK, 1/4"-28 Thread, bore 1.30mm, with Fittings, for 1/8"OD Tubing, ea.
- Part Number: 220380
- OEM Number: JR-1065
- Unit: EA
EUR 24.70
Price excl. VAT plus shipping costs
Available
Union, PEEK, 1/4"-28 Thread, bore 1.30mm, with Fittings, for 1/8"OD Tubing, ea.
Union, PEEK, 1/4"-28 Thread, thru bore 1.30mm, with Fittings, for 1/8"OD Tubing, maximum pressure 35bar, ea.
| Manufacturer: | BGB Analytik |
|---|---|
| Connector Type: | Union |
| Port Style: | Flat-Bottom |
| Port Type: | Universal |
| Raw Material: | PEEK |
| Tubing Type: | 1/8" OD |
| Head Diameter: | 9.4 mm |
| Body Length: | 16.7 mm |
| Bore Size: | 1.30 mm |
| Length Type: | Standard |
| Color: | Natural |
| Thread #1: | 1/4"-28 UNF |
| Thread #1 Type: | female |
| Thread #2: | 1/4"-28 UNF |
| Thread #2 Type: | female |
| max Pressure (bar): | 35 bar |
| max Pressure (psi): | 500 psi |
| Connector Application: | MPLC |
| Package Size: | 1 |
Related Products
-
Union, PEEK, 1/4"-28 Thread, bore 0.75mm, with Fittings, for 1/16"OD Tubing, ea. -
Union, ETFE, 1/4"-28 Thread, End-to-End Thread, for 1/8"OD Tubing, ea. -
Plug, POM (Delrin), One-Piece Fingertight, for 1/4"-28 FB Thread, pk.10 -

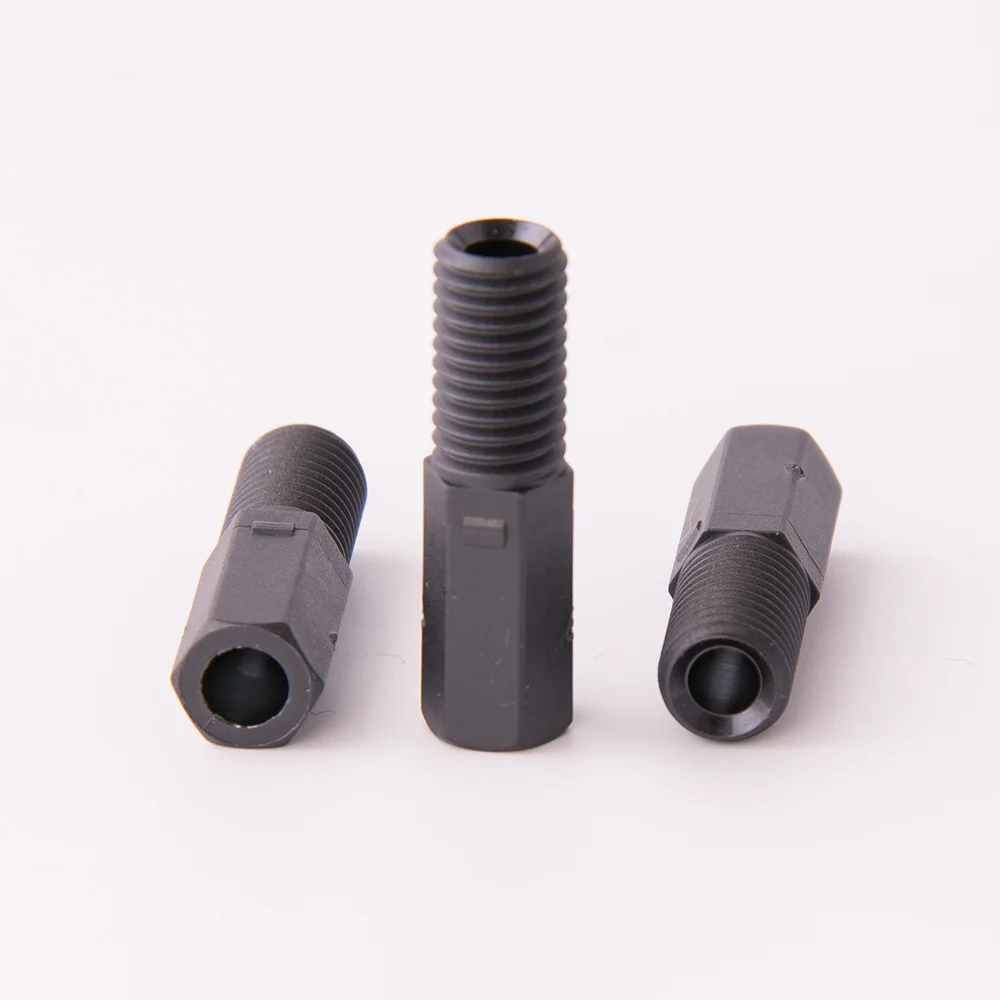

Nut, PPS, Hex-Head, 1/4"-28 FB Thread, for 1/8" OD Tubing, pk.10 -

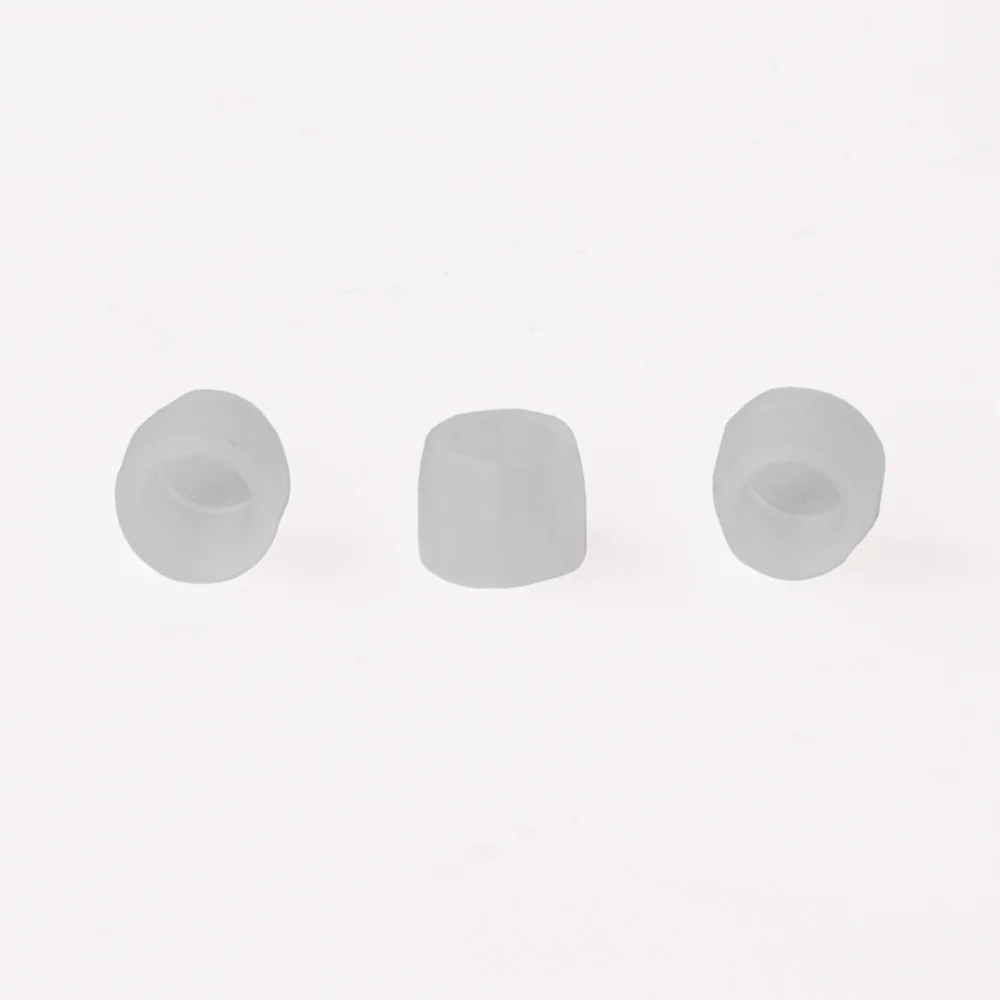

Ferrule, ETFE, for 1/4"-28 FB Thread, for 1/8" OD Tubing, pk.10 -
