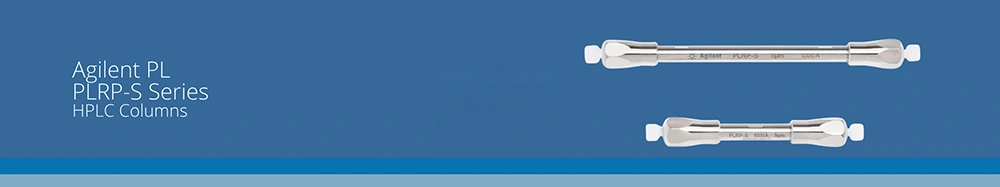

Agilent PLRP-S polymeric reversed-phase HPLC Columns

PLRP-S Series

Agilent PLRP-S Polymer HPLC Columns

Agilent PLRP-S HPLC columns use a highly cross-linked, rigid polystyrene-divinylbenzene (PS-DVB) copolymer as the reversed-phase stationary phase. Unlike silica-based reversed-phase materials, the PLRP-S particle is inherently hydrophobic and does not require bonded groups. The polymeric structure provides broad chemical and thermal stability for demanding reversed-phase LC applications.

The spherical, macroporous PS-DVB particles maintain their structure when changing between aqueous and organic mobile phases without swelling or shrinking. Because the stationary phase contains no silica, it is also free from residual silanol groups that can cause secondary interactions with basic compounds and amines.

PLRP-S media are available in different particle sizes (3 µm, 5 µm, 8 µm, 10 µm, 15–20 µm and 30–50 µm) and different pore sizes (100 Å, 300 Å, 1000 Å and 4000 Å) for analytical and preparative chromatography. The consistent polymer chemistry allows methods to be transferred from analytical screening to larger-scale purification while maintaining the same fundamental stationary-phase selectivity.

PLRP-S Overview

Highly cross-linked PS-DVB polymeric stationary phase
Stable across a pH range of 1.0–14.0
Suitable for clean-in-place (CIP) procedures using aggressive alkaline solutions such as 1M NaOH
Maximum operating temperature up to 200 °C
Pore size of 100 Å designed for small molecules below approximately 2,000 Da
Pore size of 300 Å designed for biomolecules up to approximately 100,000 Da
Pore sizes of 1000 Å and 4000 Å designed for large macromolecular structures like large globular proteins to monoclonal antibodies (mAbs) and DNA fragments

Use the product filters below to select the appropriate Agilent PLRP-S HPLC column according to pore size, particle size, molecular-weight range, column dimensions and reversed-phase application.
