Guard Systems from Optimize Technologies

Optimize Guard Systems

The best way to protect an analytical column is to install a guard column between the injection valve and the analytical column. The guard column traps particulates, solvent impurities and retained sample components. The ideal guard column should have no effect on the separation. For best results a guard column with matching bonded phase and optimal hardware configuration should be selected.

Optimize Technologies offers several guard options for LC applications.

The OPTI-GUARD 1mm (400bar) is an all-in-one solution. The mated holders and cartridges are disposable and designed for use with 1, 2.1, 3.0 and 4.6mm ID columns. The OPTI-GUARD is no larger than a standard HPLC Fitting.

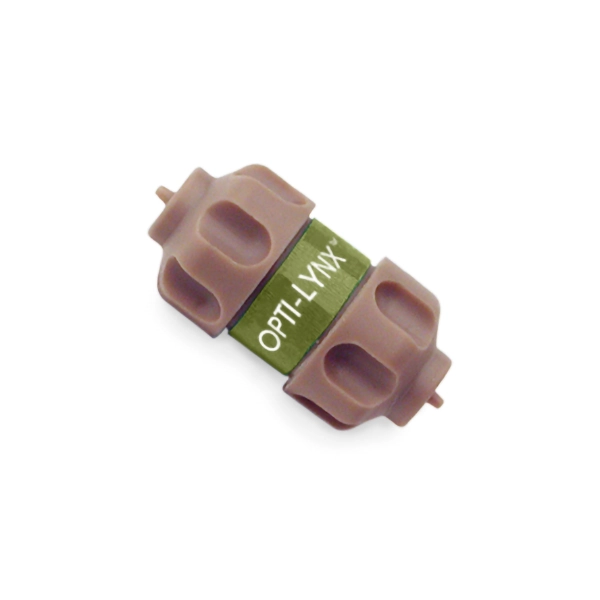

OPTI-LYNX2 (400bar) features a quarter-turn, quick-connect, hand-tight holder. The second Generation OPTI-LYNX is more affordable and robust yet still allows users to change a cartridge in seconds.

Like the OPTI-LYNX system, the EXP Holder for HPLC and UHPLC (1400bar) stays plumbed into the LC column. To change a cartridge, simply unscrew the holder cap by hand, replace the cartridge and screw the holder back together by hand. Easy, no tools needed.

Discover the entire product portfolio of Optimize Technologies products in the Optimize catalog for HPLC, UHPLC and LC/MS products.

103 Produits

Optimize Technologies OPTI-GUARD 1mm Guard Column

OPTI-Guard 1mm, C8 (Yellow Label), pk.5

Optimize Technologies OPTI-Guard 1mm, C8 (Yellow Label), pk.5 (for 1.0, 2.0 and 2.1mm ID HPLC Columns)

Art.-Nr.: OZ-10-02-00010

EUR 469.00
